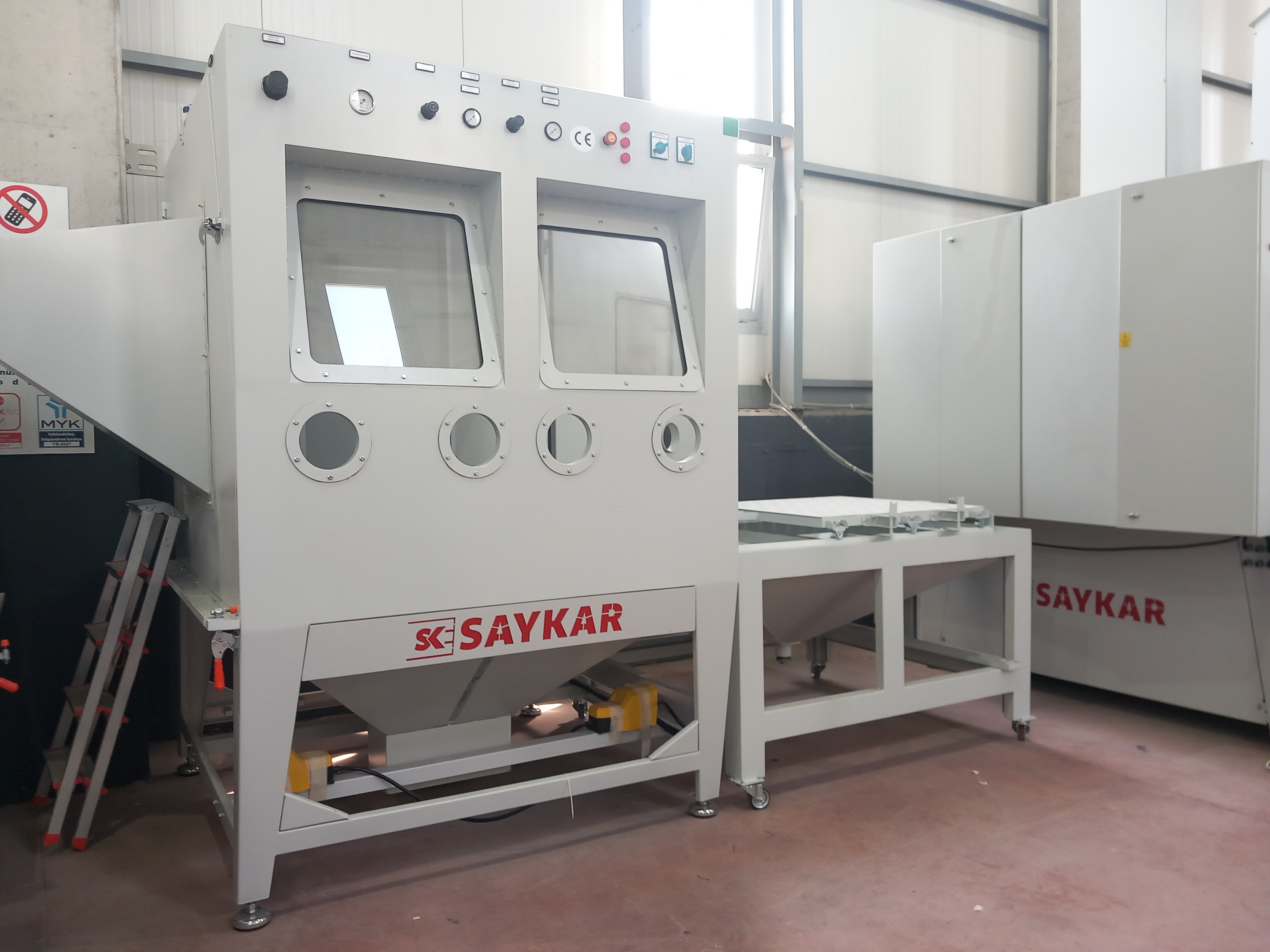

SK 1510 Injection Shaft Blasting Machine
An injection blasting machine designed for heavy and large parts, especially turbine shafts up to 110 cm in diameter, featuring a dedicated transport cart and 3 different access points.
- Purpose-built for turbine shafts up to 110 cm (Ø1100mm) in diameter
- Easy machine loading with a 500 kg-capacity transport cart
- Blasting access from 3 different points
- Injection system — 2x processing capacity
Application Areas
- Turbine Shaft Surface Preparation
- Power Plant / Turbine Maintenance & Repair Applications
- Blasting Heavy and Large Cylindrical Parts
- Large-Scale Part Surface Treatment in Heavy Industry
Product Description

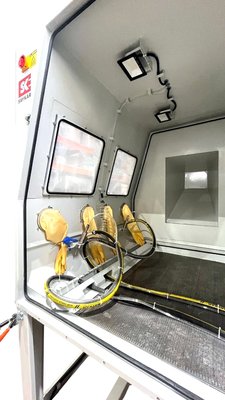

Heavy and large parts suitable for manual handling are loaded into the SK 1510, which has doors on both sides, using a transport cart. The machine's left door has a circular opening with a sealing gasket so roughly 50 cm of the turbine shaft's tube section can remain outside the machine, while 90-120 cm of the shaft stays inside the cabin and the operator's blasting position sits about 30-45 cm from the shaft.
Technical Specifications
| Machine Dimensions | 2752 mm length (including loading stand) x 2000 mm depth x 2500 mm height |
|---|---|
| Maximum Shaft Diameter | Ø1100 mm (110 cm) |
| Blasting System | Injection-assisted — 2x processing capacity compared to vacuum systems |

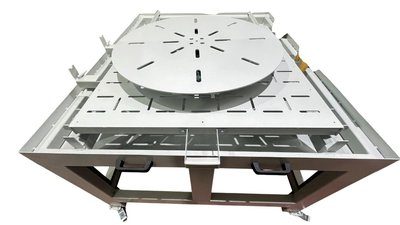

| Transport Cart | 500 kg carrying capacity; the parts transport cart is supplied by the customer |
| Access Points | Operator access from 3 different points |
| Filtration System | Jet-Pulse, 1-micron pleated cartridge, 1.1 kWh fan motor |
| Door Opening | 1448 mm x 1443 mm (sized for Ø1100 mm shaft passage) |
| Usable Consumable Specific Gravity | Below 4 g/cm³ (standard injection system) |
| Minimum Consumable Quantity | 100 kg |
| Nozzle Holder | Standard nozzle holder enabling two-handed operation |
| Safety Package | Standard Safety/Security Package included |
| Power Supply | 380V / 3-Phase / 50Hz |
| Air Requirement | 1.2 m³/min, 6 bar |
| Nozzle | Standard 8 mm boron carbide nozzle (SM 1708); custom-size boron carbide nozzles available on request |
| Blasting Gun | Standard aluminum blasting gun, 4.2 mm injector, 1.2 m³/min air consumption per gun |
| Installation and Training | 1-day on-site installation; ½–1 day user and maintenance training (optional) |
| Warranty | 2-year manufacturer warranty (wear consumables excluded) |
| Certification | CE Certified, Dust Emission Test Report |
Optional Features
- Pressure System Option — 3x more powerful spray, enables use of consumables (including steel shot/grit) with a specific gravity up to 7 g/cm³
Compatible Consumables
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet (standard injection version)
Related Products
SK 1000 Injection Blasting Machine
Manual injection blasting for medium-to-large parts
SK 1400 Injection Blasting Machine
The family's basic/general-purpose manual industrial model
SK 2100 Injection Blasting Machine
3-position, large-cabin manual machine

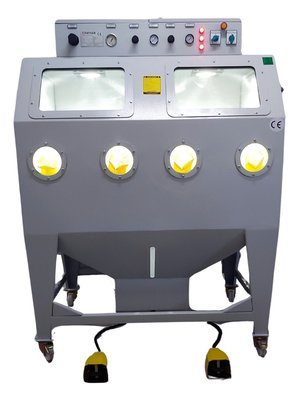

SK 1500 Two-Operator Injection Blasting Machine
