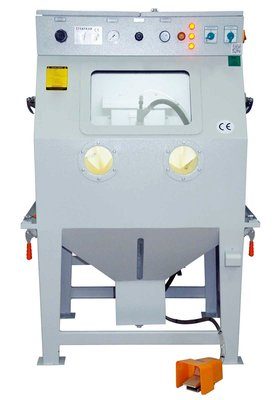

SK 1000 Injection Blasting Machine

A powerful blasting machine for medium-large parts that, thanks to its injection system, works 40% faster than vacuum systems. Jet-Pulse filter, CE certified, low dust emission.

Injection system — 40% faster than vacuum systems
Jet-Pulse filtration system
Nozzle support bracket that enables two-handed operation
Low dust emission — Dust Dispersion Test Report

Request Technical Specifications and Quote Chat on WhatsApp

Application Areas

Medium-Large Part Surface Preparation
Casting Part Cleaning
Weld Seam Cleaning
Industrial Maintenance and Repair

Product Description

The SK 1000 Injection Blasting Machine lets you achieve the desired surface quality by spraying blasting consumables with a specific gravity below 4 g/cm³ onto the surface. In addition to the vacuum effect created by pressurized air, it has an injection system in which the speed of the consumable can be increased or decreased via the injector; it is CE certified and has a Dust Dispersion Report.

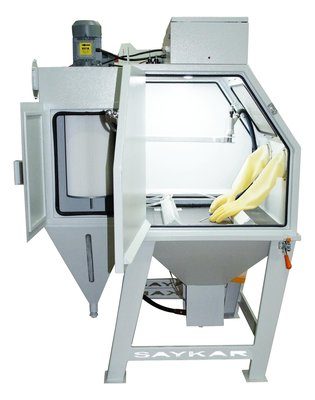

In the machine, which has doors on both sides, parts are placed by opening the side door and the blasting process is performed manually by the operator using gloves. The pressurized air used in the injection system can be adjusted separately with a regulator, and the sand quantity with a second regulator. The automatic consumable recycling system provides uninterrupted operation.

It is designed to meet companies' basic blasting process needs in surface treatment. Being able to work 40% faster compared to vacuum systems provides a significant time advantage for intensive production environments.

Technical Specifications

Blasting Cabin Dimensions	1000 x 800 x 800(h) mm external, side-loading, double-door
Processable Part Size	Approximately 600 x 600 x 600 mm (may vary depending on part shape)
Overall Machine Dimensions	1770(h) x 1164 x 1285 mm — total length with foot pedal 2477 mm
Blasting System	Injection — works 40% faster compared to vacuum systems
Filtration System	Jet-Pulse, 1-micron pleated filter cartridge, 3000 RPM / 1.1 kW IP55 fan motor (ATEX-certified motor optional)
Minimum Consumable Quantity	50 kg
Usable Consumable Density	All consumables with specific gravity below 4 g/cm³ (aluminum oxide, glass bead, silicon carbide, garnet, etc.)
Nozzle Support Bracket	Enables two-handed operation
Power Supply	380V / 3 Phase / 50Hz
Air Requirement	1.2 m³/min at 6 Bar — 1.8 m³/min at 8 Bar
Standard Nozzle	8 mm Boron Carbide (SM 1708), custom-order nozzles also available
Standard Blasting Gun	Available with stainless steel, steel, or aluminum body, 4.2 mm injector, 1.2 m³/min air consumption at 6 Bar
Installation and Training	Plug-and-play installation; commissioning is performed by the customer with SAYKAR's remote support, an on-site commissioning and training engineer can be assigned upon request
Warranty	2-year manufacturer warranty (excluding wear consumable parts)
Certificate	CE Certified, ISO 9001:2015, Dust Dispersion Test Report (measured: 2.205 mg/m³ during loading / 3.333 mg/m³ during unloading)

Product Video

Optional Features

Rotary Table and Loading Stand — 65 cm diameter, 5 mm thick; for ergonomic loading of parts over 15 kg (mobile or fixed type)
Filter Exhaust Unit (SKF 25) — for facilities without a suitable duct/exhaust line, 304 stainless steel water-precipitation filtration unit
Rubber Shielding (Interior Cabin) — extends panel life in cabins working with eroding, angular abrasives

Technical drawings of the Rotary Table and Loading Stand option are shown below.
