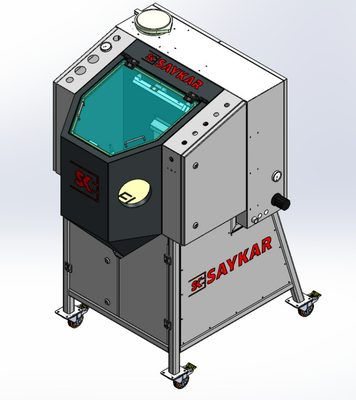

SK 500 B Pressure Pencil Blasting Machine
A pressure system customized for compact pencil blasting. With an internal 10-liter pressure tank and a 1.5 mm SAYKAR custom-made nozzle, it delivers precise, low-dust-emission blasting.
- 1.5 mm SAYKAR custom-made nozzle for precise pencil blasting
- Internal 10-liter pressure tank — space-saving, compact design
- Jet-Pulse filtration system for low dust emission
- Runs on single-phase 220V mains power — no special electrical infrastructure required
Application Areas
- Defense Industry
- Aerospace
- Weapon Blasting
- Glass Object Blasting
- Mold Blasting
Product Description
The SK 500 B Pressure Blasting Machine is a system customized for pencil blasting that sprays blasting consumables with a specific gravity below 7 g/cm³ onto the surface. It has an internal pressure tank and filtration unit; the system is CE certified and comes with a Dust Emission Report.
In this top-loading machine, parts that can be carried by staff are placed inside through the top door, and blasting is performed manually by the operator using gloves. The system operates on a closed pressure vessel principle during operation; the 1.5 mm SAYKAR custom-made nozzle and spraying system technology enable precise pencil blasting.
To save space, the pressure tank is integrated into the underside of the machine body — designed to be compact and economical. The air pressure used during operation can be adjusted via a regulator. The filtration unit, equipped with the Jet-Pulse system, ensures low dust emission.
The SK 500 B's external cabin dimensions are 700x900x750(h) mm, and it is designed to meet the basic surface treatment needs of parts approximately 400x400x400 mm in size, given operator glove reach and ergonomic working conditions (these dimensions may vary depending on part shape). The SK 500 B, the entry-level model in the industrial pressure-tank-operated blasting machine series, is used successfully in many sectors such as Defense Industry, Aerospace, Weapon Blasting, Glass Object Blasting and Mold Blasting.
Thanks to its internal 10-liter pressure tank made of 316 stainless steel, the machine can blast within a range of 2-6 bar; the tank is pressurized with a "machine preparation" switch and automatically returns to atmospheric conditions at the end of the operation. The pencil gun has an aluminum body, and the special pencil blasting nozzle, made of tungsten carbide, is manufactured by SAYKAR. The maximum abrasive diameter usable in the system is 200 microns; grains larger than this value cause clogging. The machine operates with a maximum of 10 kg of consumable.
Technical Specifications
| Blasting Cabin Dimensions | 700 x 900 x 750(h) mm, top-loading |
|---|---|
| Workable Part Size | Approximately 400 x 400 x 400 mm (may vary depending on part shape) |
| Blasting System | Pressure — customized for pencil blasting, operates on a closed pressure vessel principle |
| Pressure Tank | 10 liters, 316 stainless steel, operates at pressures between 2-6 bar |
| Maximum Blasting Pressure | 6 bar |
| Filtration System | Jet-Pulse, 1-micron phobic cartridge; fan unit 1700 m³/h flow, 2900 rpm, 260 W, single-phase 230V, 55 dB(A) — ATEX certified fan optional |
| Standard Nozzle | 1.5 mm SAYKAR custom-made tungsten carbide nozzle (dedicated to pencil blasting) |
| Blasting Hose | 8 mm diameter, copper-wire-reinforced NBR |
| Maximum Consumable Specific Gravity | Up to 7 g/cm³ |
| Maximum Abrasive Diameter | 200 microns |
| Maximum Consumable Quantity | 10 kg |
| Power Supply | 220V / 1-Phase / 50Hz |
| Air Requirement | 1.2 m³/min at 6 bar |
| Warranty | 2-year manufacturer warranty (excluding wear consumable parts) |
| Certification | CE Certified, Dust Emission Test Report |
Optional Features
- SKF 25 Filter Outlet Unit — made of 304 stainless steel, wheeled, provides secondary filtration on the water-precipitation principle; recommended for facilities without a duct line or with insufficient ventilation
Compatible Consumables
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet • Steel Shot/Grit
Suitable for use with consumables of specific gravity below 7 g/cm³ and diameter smaller than 200 microns — larger diameters may cause clogging.
