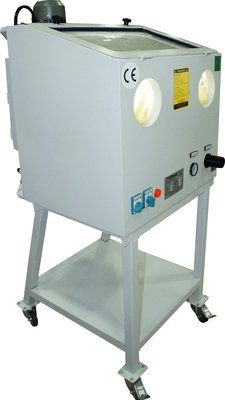

SK 500 Benchtop Blasting Machine
A Compact and Economical Solution for Dust-Free, Precise Blasting of Small Parts.
- Dust-Free Working Environment: A fully enclosed cabin design ensures zero dust emission (CE Certified).
- Uninterrupted Visibility and Cleanliness: Self-cleaning, timed Jet-Pulse filter system.
- Low Energy and Air Consumption: Runs on single-phase (220V) mains power with no extra infrastructure cost, and can operate with a 300-liter piston compressor.
- Low Maintenance Needs: A compact, robust component structure ensures years of trouble-free operation with low maintenance requirements.
Application Areas
- Small Part and Sample Cleaning
- Jewelry and Watch Industry
- Electronic Component Cleaning
- R&D and Prototype Work
Product Description
Designed with Saykar engineering, the SK 500 Benchtop Blasting Machine is an ideal entry-level system for operations requiring high-precision cleaning, roughening, or finishing of small parts. Its low air consumption and user-friendly structure, which can be set up with a modest investment, boost workshop efficiency.
A fully domestic and original design, the SK 500 can be easily operated with standard mains power (single-phase electrical panel) and just a 300-liter piston compressor, without needing a construction site or factory environment. Blasting pressure can be adjusted flexibly to suit the need.
With its compact body and single (right) side door, it is suitable for benchtop use; the blasting process is controlled via the valve on the injector. The blasting cabinet dimensions are 650x500x380(h) mm, and given operator glove reach and ergonomic working conditions, it is designed to process small and medium-sized parts that fit within the cabinet volume. As standard, a 3 mm injector gun is used, consuming 0.6 m³ of air per minute at 6 bar; the machine ships with a standard 6 mm boron carbide nozzle, with special-order boron carbide nozzles available on request. Operating with a minimum of 10 kg of consumable, the SK 500 is used successfully in many sectors such as Defense Industry, Aerospace, Weapon Blasting, Glass Object Blasting and Mold Blasting. The machine is covered by a 2-year manufacturing guarantee (wear consumables subject to blasting are not covered by the warranty).
Technical Specifications
| System Type | Benchtop, Compact Enclosed Cabin |
|---|---|
| Blasting Cabinet Dimensions | 650 x 500 x 380(h) mm |
| Loading Type | Single (Right) Side Lid |
| Power Supply | Single-Phase (220V/50Hz) Mains Power |
| Compressor Requirement | Can Operate with a 300 L Piston Compressor |
| Air Consumption | 0.6 m³/min at 6 Bar |
| Minimum Abrasive Quantity | 10 kg |
| Compatible Abrasives | Materials with density below 4 gr/cm³ (Aluminum Oxide, Glass Beads, Silicon Carbide, Garnet, etc.); materials above 7 gr/cm³ such as Steel/Stainless Steel Shot-Grit are not used |
| Filtration | Automatic Timed Jet-Pulse Filter, 1 Micron Cartridge |
| Blasting Pressure | Adjustable |
| Certification | CE Certified, Dust Emission Report |
| Warranty | 2-Year Manufacturing Guarantee (Wear Consumables Excluded) |
Components Used and Model Information
| Gun | KT AL 30 (Hardened Aluminum Body) |
|---|---|
| Injector Diameter | 3 mm |
| Filter Cartridge | FLT 150 T |
| Nozzle | 6B50S |
| Filter Fan Motor | 0.37 KW |
| Pressure Regulator | ½" Pressure Regulator |
| Blasting Hose | 8x12 mm Pneumatic |
| Lighting | LED 50 |
| Door Seal | FTL1000 |
| Gloves | ELD 60/10 Blasting Gloves |
| Glass Size | 50x3, Mine Glass |
| Door Lock | İmamoğlu KK1 |
| Working Table (Optional) | Optional wheeled table unit for ergonomic operation (offered on the SK 500 S model) |
Test Your Production Parts in Our Showroom
Contact us to test the SK 500 model on your own samples and get a price quote.
