SK 1000 X 2T Dual-Drum Automatic Blasting Machine
An automatic blasting machine specially designed for 24/7 uninterrupted production needs, capable of simultaneous blasting with independent parameters via its dual-drum structure.
- Dual drum — independent operating parameters from one another
- Specially designed for 24/7 uninterrupted blasting
- Fully automatic control via PLC screen
- 40% faster than vacuum systems
Application Areas
- Washer, Bolt and Fastener Production
- Zipper and Small Metal Part Processing
- 24/7 Uninterrupted Production Lines
- High-Volume Serial Production
Product Description

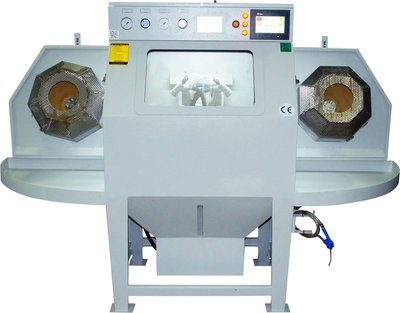

The SK 1000 X 2T Automatic Drum-Type Blasting Machine has doors on both sides; parts are placed inside the drums by opening the doors where the drums are located (each drum has a capacity of approximately 6 kg of parts). The blasting process is set independently for each drum via the PLC screen.
With its dual drum, it is specially designed for the needs of companies requiring 24/7 blasting.
Technical Specifications
| Blasting Cabin Dimensions | 1000 x 800 x 800 mm, DKP steel body, dual side-loading doors, 55 cm diameter hexagonal drum on each door (2 units) |
|---|---|
| Blasting System | Injection — dual-nozzle automatic spraying (separate for each drum) |
| Control | PLC touchscreen — each drum with independent parameters from one another |
| Filtration System | Jet-Pulse, 1-micron phobic cartridge, 1.1 kWh fan motor |
| Minimum Consumable Quantity | 100 kg |
| Power Supply | 380V / 3 Phase / 50Hz |
| Air Requirement | 2.4 m³/min, 6 bar (single drum, 2 nozzles); if both drums run simultaneously, a total of 4.8 m³/min, 6 bar (4 nozzles — 2 on the right, 2 on the left) |
| Nozzles | Standard 8 mm boron carbide nozzle (custom sizes available on request) |
| Blasting Guns | Standard metal blasting gun, 4.2 mm injector, 1.2 m³/min air consumption per gun at 6 bar |
| Usable Consumables | Materials with specific gravity below 4 g/cm³ (Aluminum Oxide, Glass Bead, Silicon Carbide, Garnet, etc.); materials above 7 g/cm³ such as Steel Shot/Grit and Stainless Steel Shot/Grit cannot be used |
| Warranty | 2-year manufacturer warranty (excluding wear consumable parts) |
| Certificate | CE Certified, Dust Dispersion Test Report |
| Safety | Safety package included |
| Installation and Training | 1-day installation and user/maintenance training within Istanbul (outside Istanbul evaluated separately upon request) |
Compatible Consumables
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet

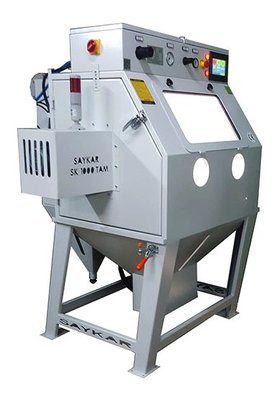

See the SK 1000 T if a single drum is sufficient.
Test Your Production Parts in Our Showroom
Contact us to test the SK 1000 X 2T Dual-Drum Automatic Blasting Machine with your own samples and to get a price quote.
