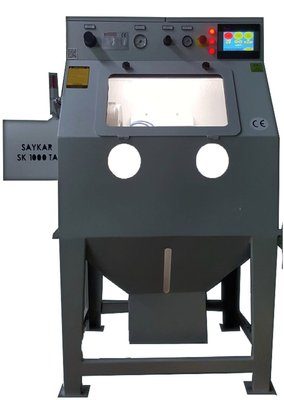

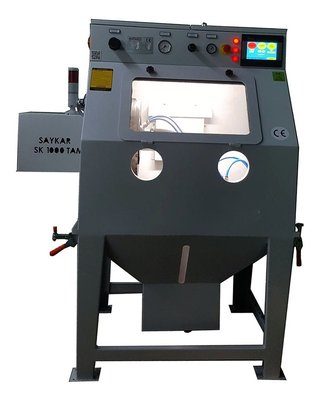

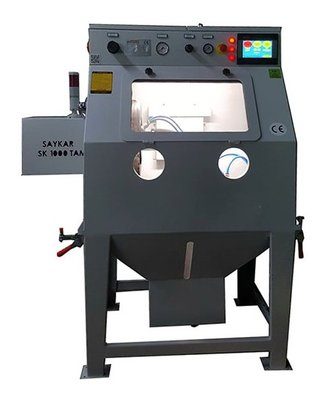

SK 1000 T Drum-Type Automatic Blasting Machine
PLC-screen, dual-nozzle drum-type automatic blasting machine. Provides personnel-independent, standard-quality blasting for high-volume production of small parts.
- Fully automatic control via PLC screen
- Dual-nozzle automatic spraying system
- Personnel-independent surface treatment capacity
- 40% faster than vacuum systems
Application Areas
- Washer, Bolt and Fastener Production
- Zipper and Small Metal Part Processing
- High-Volume Small Part Blasting
- Personnel-Independent Serial Production Lines
Product Description
The SK 1000 T Automatic Drum-Type Blasting Machine lets you achieve the desired surface quality by spraying blasting consumables with a specific gravity below 4 g/cm³ onto the surface. It is CE certified and has a Dust Dispersion Report. The system has dual spraying and all functions are controlled via the PLC screen.

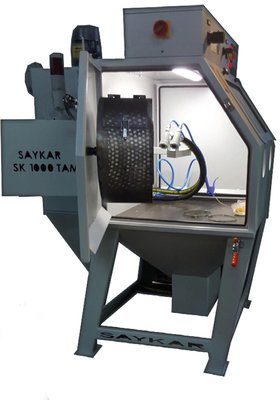

In the machine, which has doors on both sides, parts are placed inside the drum by opening the door where the drum is located. The blasting process is set via the PLC screen by selecting the drum rotation direction, rotation speed, blasting duration and repeat programs. At the end of the cycle, the machine stops with an audible and visual signal; personnel unload the drum and load new parts.
For companies producing large numbers of small parts (washers, bolts, zippers, etc.), it aims to save time and personnel with its high capacity and standard surface treatment quality.
Technical Specifications
| Blasting Cabin Dimensions | 1000 x 800 x 800 mm, side-loading double-door, 55 cm diameter hexagonal drum on the left door |
|---|---|
| Blasting System | Injection — dual-nozzle automatic + single-nozzle manual use option via glove ports |
| Control | PLC touchscreen — drum rotation direction/speed, blasting duration, repeat program selection |
| Filtration System | Jet-Pulse, 1-micron phobic cartridge, self-cleaning, 1.1 kWh fan motor |
| Minimum Consumable Quantity | 75 kg |
| Power Supply | 380V / 3 Phase / 50Hz |
| Air Requirement | 2.4 m³/min, 6 bar |
| Standard Nozzle | 8 mm Boron Carbide (SM 1708), custom-order nozzles also available |
| Blasting Gun | Standard metal blasting gun, 4.2 mm injector, consumes 1.2 m³/min of air at 6 bar |
| Consumable Specific Gravity Limit | Max. 4 g/cm³ (materials above 7 g/cm³, such as steel shot/grit and stainless steel shot/grit, cannot be used) |
| Warranty | 2-year manufacturer warranty (excluding wear consumable parts) |
| Certificate | CE Certified, Dust Dispersion Test Report |
Product Video
Compatible Consumables
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet
Test Your Production Parts in Our Showroom
Contact us to test the SK 1000 T Drum-Type Automatic Blasting Machine with your own samples and to get a price quote.
