SK 18 Dust-Free Vacuum Blasting Machine
A portable vacuum blasting system that lets equipment too large or too fixed in place to be moved to a blasting machine or booth be blasted in place, without disassembly, dust-free and quietly. This is the compact, entry-level model.
- Dust-free, quiet blasting — sprayed consumable is simultaneously recovered by vacuum
- Portable, wheeled, easy to operate
- Minimal operator PPE requirement
- Jet-Pulse, 1-micron self-cleaning filter system
- CE certified, 2-year manufacturer warranty
Application Areas
- Blasting Large Equipment That Cannot Be Disassembled
- Parts That Cannot Be Transported to a Blasting Facility
- Environments Requiring Prevention of Dust and Consumable Spread
- Sites Requiring Low Noise and Minimal PPE
Product Description
The SK 18 is used to blast equipment that, due to its size, cannot be blasted inside a blasting machine or booth, or that cannot be transported to a blasting facility — right where it stands, without disassembly. In this dust-free, vacuum-operated system, the sprayed consumable is simultaneously recovered by the vacuum unit, preventing dust and consumable from spreading inside the facility.
In use, the machine is shipped fully assembled; after the appropriate consumable is loaded, one operator starts the process with a foot pedal while a second operator manually adjusts the media control valve to regulate the consumable flow rate. The SK 18 is a compact system with an 18-liter pressure tank, measuring 1120 x 560 x 1700 mm and weighing 115 kg; it ships as standard with 4.5 mm boron carbide nozzles and can run glass bead/aluminum oxide up to 0.8 mm grain size and steel grit up to 0.4 mm.

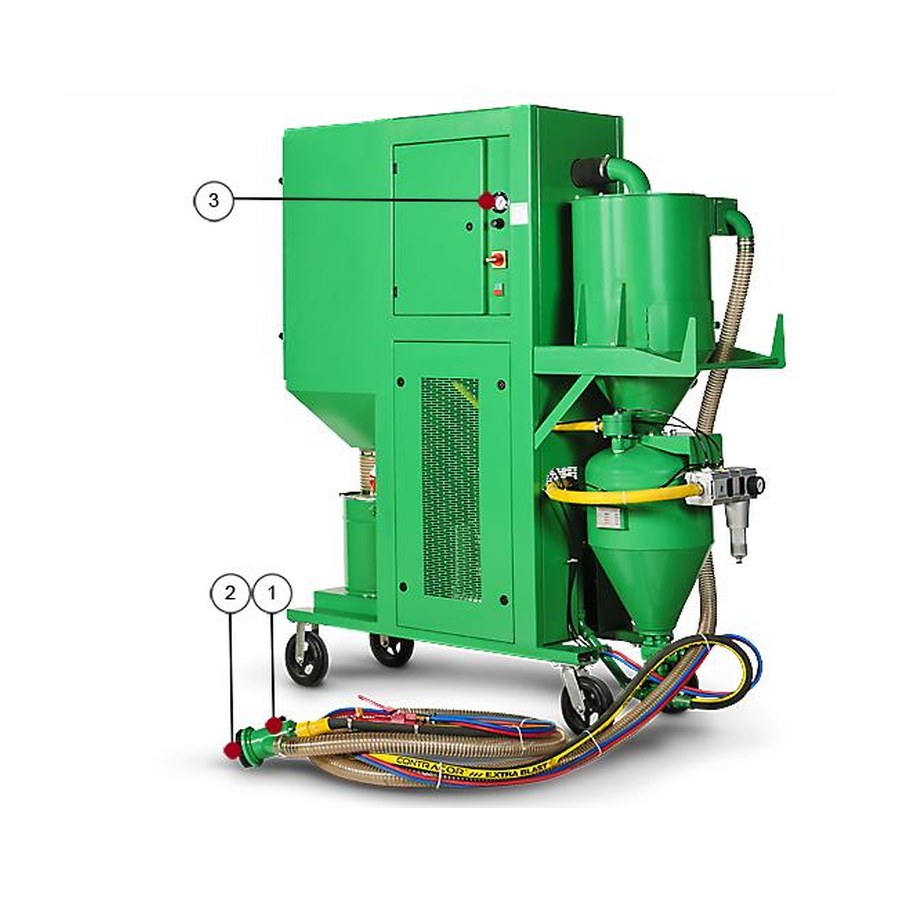

SAYKAR provides a detailed spare parts list (in 3 categories — consumable, recommended, and general spare parts) including consumable supply, and installation plus user/maintenance training can be completed in 1 day, optionally. For higher-capacity needs, the SKBRV-5 model is recommended.
Technical Specifications
| Pressure Tank | 18 liters |
|---|---|
| Dimensions / Weight | 1120 x 560 x 1700 mm, 115 kg |
| Standard Nozzle | 4.5 mm Boron Carbide |
| Working Pressure / Air Requirement | 2.6-7.0 bar / 0.6-1.3 m³/min |
| Electrical | 2000-2400 W |
| Compatible Consumable | Glass Bead / Aluminum Oxide ≤ 0.8 mm, Steel Grit ≤ 0.4 mm |
| Filtration | 1 micron, Jet-Pulse, 1.1 kWh fan |
| Certification | CE Certified |
| Warranty | 2-year manufacturer warranty |
Test Your Production Parts in Our Showroom
Contact us to get information and a price quote for the SK 18 Dust-Free Vacuum Blasting Machine.
