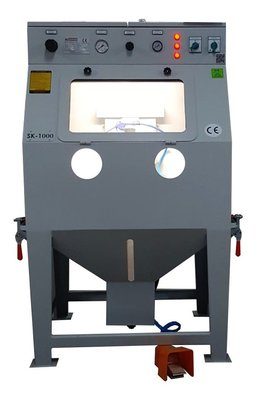

SK 1000 F Front-Loading Injection Blasting Machine
The front-loading, single-door version of the SK 1000; thanks to its injection system it works 40% faster than vacuum systems, making it ideal for facilities with limited side access. Jet-Pulse filter, CE certified, low dust emission.
- Single front-loading door — ideal for layouts with limited side access
- Injection system — 40% faster than vacuum systems
- Jet-Pulse filtration system
- Low dust emission — Dust Dispersion Test Report
- Nozzle hanger allows the operator to blast with both hands
Application Areas
- Medium-Large Part Surface Preparation
- Casting Part Cleaning
- Weld Seam Cleaning
- Industrial Maintenance and Repair
Product Description
The SK 1000 F Front-Loading Injection Blasting Machine is the single front-door version of the SK 1000, sharing the same injection system. It lets you achieve the desired surface quality by spraying blasting consumables with a specific gravity below 4 g/cm³ onto the surface. In addition to the vacuum effect created by pressurized air, it has an injection system in which the speed of the consumable can be increased or decreased via the injector; it is CE certified and has a Dust Dispersion Report.
In the single front-loading cabin, parts are placed by opening the front door and the blasting process is performed manually by the operator using gloves. The pressurized air used in the injection system can be adjusted separately with a regulator, and the sand quantity with a second regulator. The automatic consumable recycling system provides uninterrupted operation.
As an alternative to the SK 1000's side double-door layout, it is designed for facilities where the machine needs to be accessible from a single face — for example when placed against a wall or next to other equipment. Being able to work 40% faster compared to vacuum systems provides a significant time advantage for intensive production environments.
Technical Specifications
| Blasting Cabin Dimensions | 1000 x 800 x 800 mm, front-loading, single-door |
|---|---|
| Blasting System | Injection — works 40% faster compared to vacuum systems |
| Filtration System | Jet-Pulse, 1-micron phobic filter cartridge, self-cleaning, 3000 rpm / 1.1 kW / IP55 fan motor (ATEX-certified motor optional) |
| Minimum Consumable Quantity | 25 kg |
| Blasting Pedal | Electric air pedal (PDL 32 E), foot-pedal controlled, manual operation |
| Power Supply | 380V / 3 Phase / 50Hz, 1.1 kW |
| Air Requirement | 1.2 m³/min (6 bar) / 1.8 m³/min (8 bar) |
| Standard Nozzle | 8 mm Boron Carbide (SM 1708), custom-order nozzles also available |
| Standard Blasting Gun | KT 42 metal body, 4.2 mm injector, 1.2 m³/min air consumption at 6 bar (optional: KT AL 42 aluminum body, 3.0 mm injector) |
| Blasting Hose | 1/2" custom-made hose, made of abrasion-resistant styrene-butadiene (SBR) and natural rubber with copper wire reinforcement |
| Consumable Compatibility | Suitable for abrasives with a specific gravity below 4 g/cm³ (Aluminum Oxide, Glass Bead, Silicon Carbide, Garnet, etc.); heavy consumables above 4 g/cm³ such as Steel Shot/Grit and Stainless Steel Shot/Grit cannot be used in this machine |
| Door Safety System | Sealing gasket around the door and viewing glass, clamp-supported locking mechanism, and a door safety switch that disables the blasting system whenever the door is open |
| Installation and Training | Plug-and-play installation; customer commissioning with SAYKAR's online support, remote operator/maintenance training (on-site installation and training engineer available on request) |
| Warranty | Minimum 2-year manufacturer warranty (excluding wear consumable parts); extended annually for customers with regular maintenance service |
| Certificate | CE Certified (2006/42/EC Machinery Directive), ISO 9001:2015, Dust Dispersion Test Report |
| Exhaust / Duct Connection | Filtered air must be connected from the filter outlet to the factory duct line or to a SAYKAR Filter Outlet Unit (Ø200/Ø180 mm connection size) |
| Optional Features | Filter Outlet Unit (SKF 25, 304 stainless steel), interior rubber lining, rotary table (Ø65 cm — a loading stand is not available on this model) |
Compatible Consumables
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet
