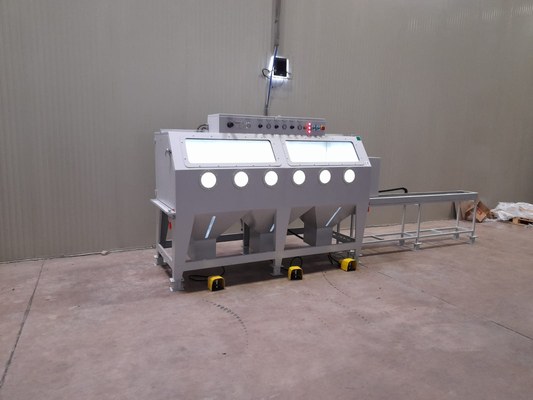

SK 2500 VALS Automatic Roll / Shaft Blasting Machine
A pressure blasting machine that automatically blasts the outer surfaces of cylindrical shafts and mill rolls, featuring an automatic part-turning unit.
- Automatic part-turning unit — the part rotates around its own axis
- Linear-axis automatic blasting — stroke length and speed can be entered as a recipe
- Pressure tank with integrated cyclone system for automatic consumable recovery
- Cartridge-filtered filtration unit with Jet-Pulse cleaning system
- CE certified
Application Areas
- Outer-Diameter Surface Treatment of Cylindrical Shafts and Mill Rolls
- Heavy Industry — Large Cylindrical Parts
- Production Lines Requiring Automatic/Manual Blasting Flexibility
Product Description
The SK 2500 VALS is designed to automatically surface-treat the outer diameters of cylindrical shafts or mill rolls. While the cylindrical parts are automatically rotated around their own axis in a horizontal position, blasting is performed automatically with a nozzle mounted on a linear axis.
In automatic blasting mode, blasting time, stroke length and linear-axis speed can be entered and recalled as a recipe from the touchscreen. The machine consists of an automatic part-turning unit, filtration unit, linear-axis motion unit and spraying system; using the stand unit, the mill roll can be driven in and out of the machine with a transport cart.
The blasting system is pressure-based; it is equipped with a pressure tank and an integrated cyclone system — the sprayed consumable is collected by a screw conveyor under the machine, passed through the cyclone to separate it from dust, and automatically reloaded into the blasting tank. The filtration unit has a cartridge filter and self-cleans via the Jet-Pulse system.
Part dimensions, handling capacity, cabin dimensions and filtration capacity are all re-engineered based on the customer's part; this page is shared to demonstrate the engineering approach we can offer for a similar requirement.
ℹ️ The SK 2500 VALS is engineered per customer; part dimensions, handling capacity, cabin dimensions, nozzle type and filtration capacity are redetermined for your part in each project. Contact us to work out the right configuration for your part.
Compatible Consumables
Glass Bead • Aluminum Oxide • Silicon Carbide • Garnet • Steel Shot/Grit
The product images on this page were taken from SAYKAR's technical drawing/render files rather than actual production photographs.
