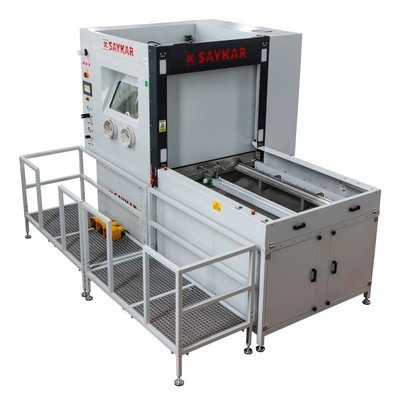

SK 1215 Single-Table Automatic Wet Blasting Machine
A fully automatic wet blasting machine with a robotic manipulator and an automatic rotary table, touchscreen-controlled, for extrusion dies and parts requiring delicate surface cleaning. Part capacity up to 700 kg.
- 1000 mm diameter automatic rotary table — capacity up to 700 kg
- Automatic scanning system with 4 nozzles linked to a robotic manipulator
- Touchscreen (Delta) — recipe-based fully automatic process control
- Proven references in the defense and aerospace industry
Application Areas
- Extrusion Die Surface Cleaning and Pre-Coating Preparation
- Rubber Dies and Molds Requiring Delicate Surface Cleaning
- Defense and Aerospace Industry Production Lines
Product Description

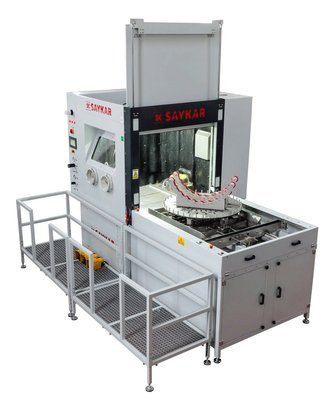

In automatic operation, the SK 1215 places dies according to part diameter on a 1000 mm (net 995 mm) diameter rotary table; 4 blasting nozzles continuously and automatically scan the rotary table to clean the die surfaces. The blasting tank is filled with approximately 80 liters of mains water and 25 kg of aluminum oxide abrasive.
The nozzles are mounted on a stainless-steel robotic manipulator; wrist and head angles are manually adjustable, while the axis movements are automatically controlled from the touchscreen. The 10 mm inner-diameter boron carbide nozzles spray from 100-150 mm from the part at 0-10 bar pressure, using a 25% abrasive + 75% water mixture. For large dies not suited to top-blasting, an optional vertical loading trolley can be fitted to present the die's extrusion channel to the operator. Cabin surfaces in contact with water are made of 316L stainless steel, and the cabin is coated overall with 3-5 mm rubber sheeting for abrasion resistance; interior lighting uses IP66 fixtures providing a minimum of 400 lux. After blasting, parts on the rotary table are rinsed with fresh water; for parts removed from the machine, dipping in a tank of grinding fluid or boron oil is recommended for corrosion protection.
Technical Specifications
| Machine Type | Single-Table Automatic Wet Blasting Machine |
|---|---|
| Cabin / Floor Footprint | 4.75 x 4 x 4 m |
| Rotary Table | 1000 mm (net 995 mm) diameter, capacity up to 700 kg |
| Control System | Touchscreen (Delta), recipe-based |
| Abrasive | 0-150 micron, specific gravity <4 g/cm³ |
| Abrasive Concentration | 25% abrasive + 75% water |
| Blasting Tank | ~80 liters water + 25 kg aluminum oxide |
| Nozzle Type | 4 units, 10 mm inner diameter, boron carbide, straight outlet; 100-150 mm distance to part, 200 mm automatic height adjustment |
| Operating Pressure | 0-10 bar |
| Manipulator | Stainless steel; wrist/head angles manually adjustable, axis movements automatic (via touchscreen) |
| Blasting Cabin | Surfaces in contact with water: 316L stainless steel; cabin coated with 3-5 mm rubber sheet; min. 400 lux IP66 lighting |
| Part Washing | Fresh-water rinse station on the rotary table after blasting |
| Power Supply | 380V/3Ph/50Hz, 220V/2Ph/50Hz, 3 kWh |
| Air Requirement | 4 x 1.8 m³/min, 6 bar |
| Water Connection | Mains water supply and drain — same as SK 800: 12x16 pneumatic hose, 1.2–1.6 bar |
| Certification | CE (04.11.2016, Report No: QA-AC-3168/16), ATEX (22.02.2021, Certificate No: IEP 21 ATEX 0906X) |
| Warranty | 2 years |
| Delivery Time | ~18 weeks |
Product Video
Compatible Consumables
Glass Bead • Aluminum Oxide
Test Your Production Parts in Our Showroom
Contact us to test the SK 1215 Single-Table Automatic Wet Blasting Machine on your own samples and get a price quote.
