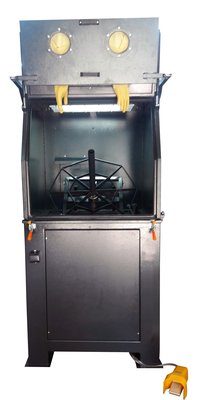

SK 1000 BF Pressure Blasting Machine (Front-Loading)
A front-loading, compact blasting machine that is 3 times more powerful than vacuum/injection systems thanks to its pressure system. Ideal for facilities with limited side access.
- Pressure system — 3 times more powerful than vacuum/injection systems
- Front-loading — ideal for layouts with limited side access
- High blasting pressure, enabling 4 times faster operation
- Jet-Pulse filtration system
Application Areas
- Surface Preparation Before Rubber Coating
- Teflon Coating Removal
- Enamel Removal
- Wheel Rim Cleaning
Product Description
The SK 1000 BF Pressure Blasting Machine blasts abrasive media with a specific gravity of up to 7 g/cm³ from a pressure tank, generating 3 times more power than vacuum and injection systems. The system, consisting of the blasting unit, filtration unit and main cabin, is CE certified and has a Dust Dispersion Report.
In the front-loading machine, parts are placed through the front door, which opens upward. During the blasting process, activated by the foot pedal, the ejected abrasive media collects beneath the machine body; when the foot is lifted off the pedal, the process ends and the pressure vessel automatically opens to reload the media for reuse.
With its compact design taking up little space, it is designed to meet the industry's need for pressure blasting machines in processes requiring high surface roughness or high blasting power (before rubber coating, Teflon coating removal, enamel removal, wheel rim cleaning, etc.).
Technical Specifications
| Blasting Cabin Inside (Working) Dimensions | 1000 x 1100 x 1000 mm, front-loading, with upward-opening piston-assisted door |
|---|---|
| Blasting Cabin Outside Dimensions | 1000 x 1500 x 1000 mm (including filter cabinet, rear side) |
| Shipping Dimensions | 1220 x 1520 x 1930 mm, in a wooden crate |
| Blasting System | Pressure type — 3 times more powerful and 4 times faster (per unit time) than vacuum/injection systems |
| Filtration System | Jet-Pulse, 1-micron cartridge, self-cleaning, 1.1 kWh fan motor |
| Minimum Abrasive Media Quantity | 50 kg |
| Nozzle Hanger Fixture | Allows two-handed operation |
| Power Supply | 380V / 3-Phase / 50Hz |
| Air Requirement | 3.6 m³/min, 6 bar |
| Standard Nozzle | 6 mm boron carbide (6B-50), custom-order nozzles also available |
| Blasting Hose / Gun | Operates with pressurized hose and hose adaptors |
| Safety/Security Package | Included as standard |
| Warranty | 2-year manufacturer's warranty (excluding wear parts) |
| Certification | CE Certified, Dust Dispersion Test Report |
Optional Features
- Turntable and Loading Stand — 80 cm diameter (larger than the 65 cm on the SK 1000 B), portable
Compatible Abrasive Media
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet • Steel Shot/Grit • Stainless Steel Shot/Grit
