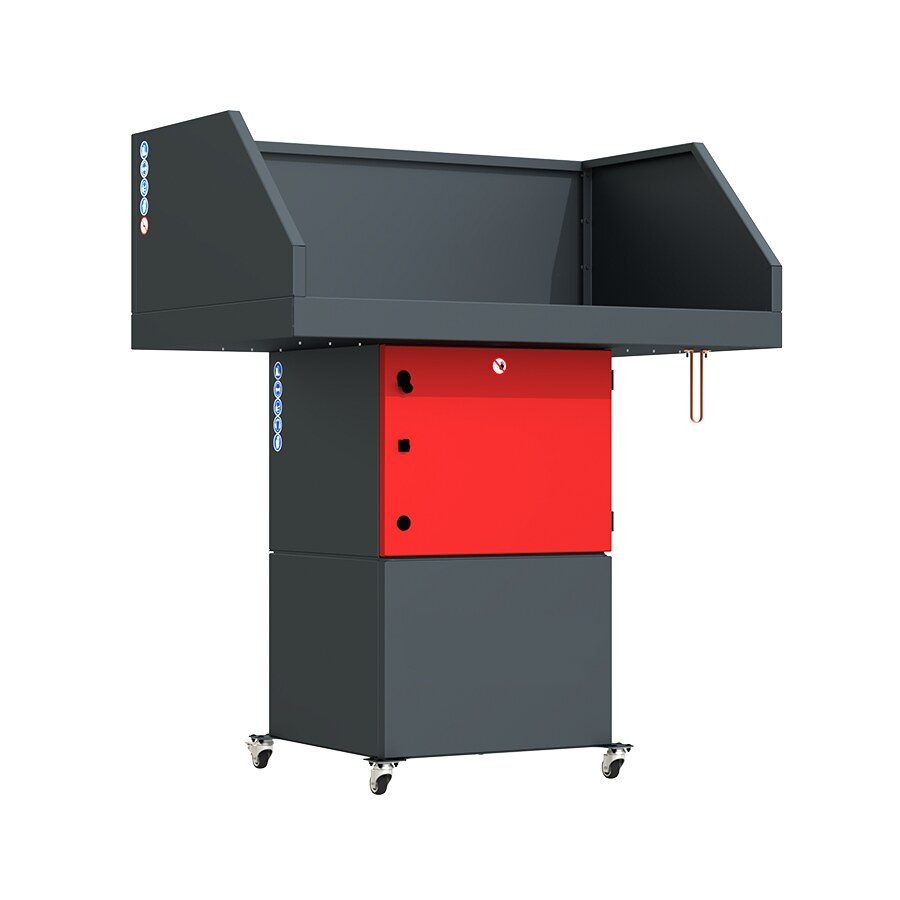

MOBYbench Compact Filtered Grinding Table
A compact grinding table with a three-stage cassette filter, plug & play, designed for light to medium-level dust/fume extraction.
- Three-stage cassette filter system — washable pre-filter + F9 main filter + optional H13 HEPA filter
- Three-position adjustable hinged side panels
- Removable grated base panel — quick access to the dust bin
- Operator panel with filter clogging indicator, on/off switch and operating hour counter
Application Areas
- Grinding
- Sanding
- Polishing
- Similar light-to-medium level dust/fume-generating processes
Product Description
MOBYbench is a compact downdraft workstation designed for applications requiring light to medium-level dust/fume extraction, such as grinding, sanding and polishing. Its three-stage cassette filter structure consists of a washable pre-filter, an F9 main filter, and an optional H13 HEPA filter for maximum particle retention, totaling 13 m² of filtration area.
With a 1,950 m³/h fan capacity and 1,500 m³/h extraction capacity, it covers an 800 x 1,200 mm working area. Hinged side panels, adjustable to three different positions, provide a flexible working area. With a fan integrated into the durable steel body, it has a minimal design requiring only plug & play installation.
Technical Specifications
| Extraction Capacity | 1,500 m³/h |
|---|---|
| Fan Capacity | 1,950 m³/h |
| Filtration Area | 13 m² (main filter) |
| Filter System | 2-stage — washable pre-filter (G2 class) + F9 main filter, optional H13 HEPA |
| Working Area | 800 x 1,200 mm |
| Dimensions (mm) | 620 x 550 x 1,400 |
| Motor Power | 0.75 kW |
| Weight | 120 kg |
| Noise Level | 75 dB(A) |
| Power Supply | 230V - 50Hz (optional 110V - 50Hz) |
| Control Panel | Filter clogging indicator, on/off switch with motor protection |
| Installation | Plug & play |
Test Your Production Parts in Our Showroom
Contact us to test the MOBYbench Compact Filtered Grinding Table with your own samples and to get a price quote.
