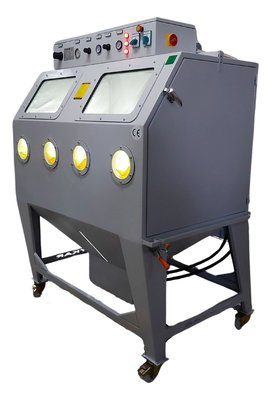

SK 1500 Two-Operator Injection Blasting Machine
An injection blasting machine with dual-sided operation that lets two operators blast at the same time, delivering 2x the production capacity of other models.
- Dual-sided cabin where two operators can work at the same time
- Injection system — 40% more efficient
- 4-hand (2-operator) simultaneous operation
- Automatic consumable recovery system
Application Areas
- High-Volume Series Production Lines
- Blasting Long/Large Parts with Two Operators
- Facilities Requiring High Capacity per Shift
- Medium-to-Large Part Surface Preparation
Product Description
Thanks to the SK 1500 Two-Operator Injection Blasting Machine's cabin with doors on both sides, parts are loaded by operators by opening the side doors. The cabin's most distinctive feature is that it allows two operators to work facing each other at the same time.
This lets the SK 1500 process 2x more parts compared to other models.
Technical Specifications
| Blasting Cabin Dimensions | 1500 x 800 x 800 mm, laser-cut, loading from both sides, double-door |
|---|---|
| Blasting System | Injection-assisted — 2x capacity with 2 operators compared to other models |
| Filtration System | Jet-Pulse, automatic time-set self-cleaning, 1-micron pleated cartridge, 1.1 kW fan motor |
| Nozzle | Swiss Nomad brand, 8 mm boron carbide nozzle as standard, rated for 1500 hours of service*, special sizes available on request, 2 pcs |
| Blasting Gun | Aluminium body, 4.2 mm injector, 1.2 m³/min air consumption per gun (6 bar), 2 pcs |
| Gun-Fixing Apparatus | Nozzle-hanging/fixing apparatus enabling two-handed (4-hand / 2-operator) simultaneous use, 2 pcs |
| Abrasive Flow Adjustment | Second regulator on the injection line for adjusting the abrasive/air mixture ratio, 2 pcs |
| Filter Regulator | Filter regulator for adjusting blasting pressure, 2 pcs |
| Foot Pedal | Dual-outlet, foot-guarded, 2 pcs |
| Viewing Window | Stainless-steel guarded, wide-angle, 2 pcs |
| Abrasive & Dust Level Indicator | Monitored via viewing windows on the cabin hopper and dust filter hopper, 1 set |
| Electrical Panel | Motor-protected, with pressure and phase indicators |
| Lighting | 2 x 36 W fluorescent, enclosed fixture |
| Paint Finish | Electrostatic oven-cured paint, RAL 5012 sky blue, 1 set |
| Blasting Gloves | 24", 1st-quality rubber, MAPA brand, CE certified, ridged pattern, 2 pairs |
| Cabin Safety Package | Door switches, solenoid valve and custom-built panel, 1 set |
| Minimum Consumable Quantity | 100 kg |
| Power Supply | 380V / 3-Phase / 50Hz |
| Air Requirement | Min. 2.4 m³/min total at 6 bar for simultaneous two-operator use (1.2 m³/min per gun) |
| Warranty | 2-year manufacturer warranty (wear consumables excluded) |
| Certification | CE Certified, Dust Emission Test Report |
Optional Features
- Manual Rotary Table (65 cm diameter)
- Loading and Transport Stand (rail system)
Compatible Consumables
Aluminum Oxide • Glass Bead • Silicon Carbide • Garnet
Test Your Production Parts in Our Showroom
Contact us to test the SK 1500 Two-Operator Injection Blasting Machine on your own samples and get a price quote.
