Shot Peen Internal Diameter Blasting Nozzles — Tungsten Carbide / Boron Carbide
Domestically manufactured blasting nozzles offering high performance and durability for every application. This group is positioned under the Shot Peening category as "Internal Diameter Blasting Nozzles" and has its own separate size/code system, distinct from the XSB/XTC/XSC (Spare Parts > Blasting Nozzles) series.
- Tungsten Carbide: 10-12 times longer service life compared to hardened steel
- Tungsten Carbide: can be custom-manufactured to any desired size — full flexibility
- Boron Carbide: 3 times more durable compared to hardened steel
- Straight, Angled and 360° outlet types available
Product Description
Internal diameter nozzles used in Shot Peening applications are offered with two different lining materials; the material choice provides different advantages in terms of service life, durability and custom-manufacturing flexibility.
Tungsten Carbide blasting nozzles are the main nozzle type used in the Shot Peening machine. They offer 10-12 times longer service life compared to hardened steel, and SAYKAR can carry out custom manufacturing/custom work in any size requested by the customer. Types: Straight, Angled, 360°.
Boron Carbide nozzles offer 3 times more durability compared to hardened steel; however, since the material's machinability is limited, unlike Tungsten Carbide, custom size/custom manufacturing cannot be carried out by SAYKAR — they are only offered in standard sizes (Straight, 360°, Angled).
360-Degree Outlet Cylindrical Type Nozzles:
| Standard Type | A (mm) | B (mm) | C (mm) |
|---|---|---|---|
| 6 | 6 | 320 | 4 |
| 8 | 8 | 320 | 6 |
| 10 | 10 | 320 | 5 |
| 12 | 12 | 320 | 8 |
| 16 | 16 | 320 | 10 |
| 18 | 18 | 320 | 12 |
| 20 | 20 | 320 | 14 |

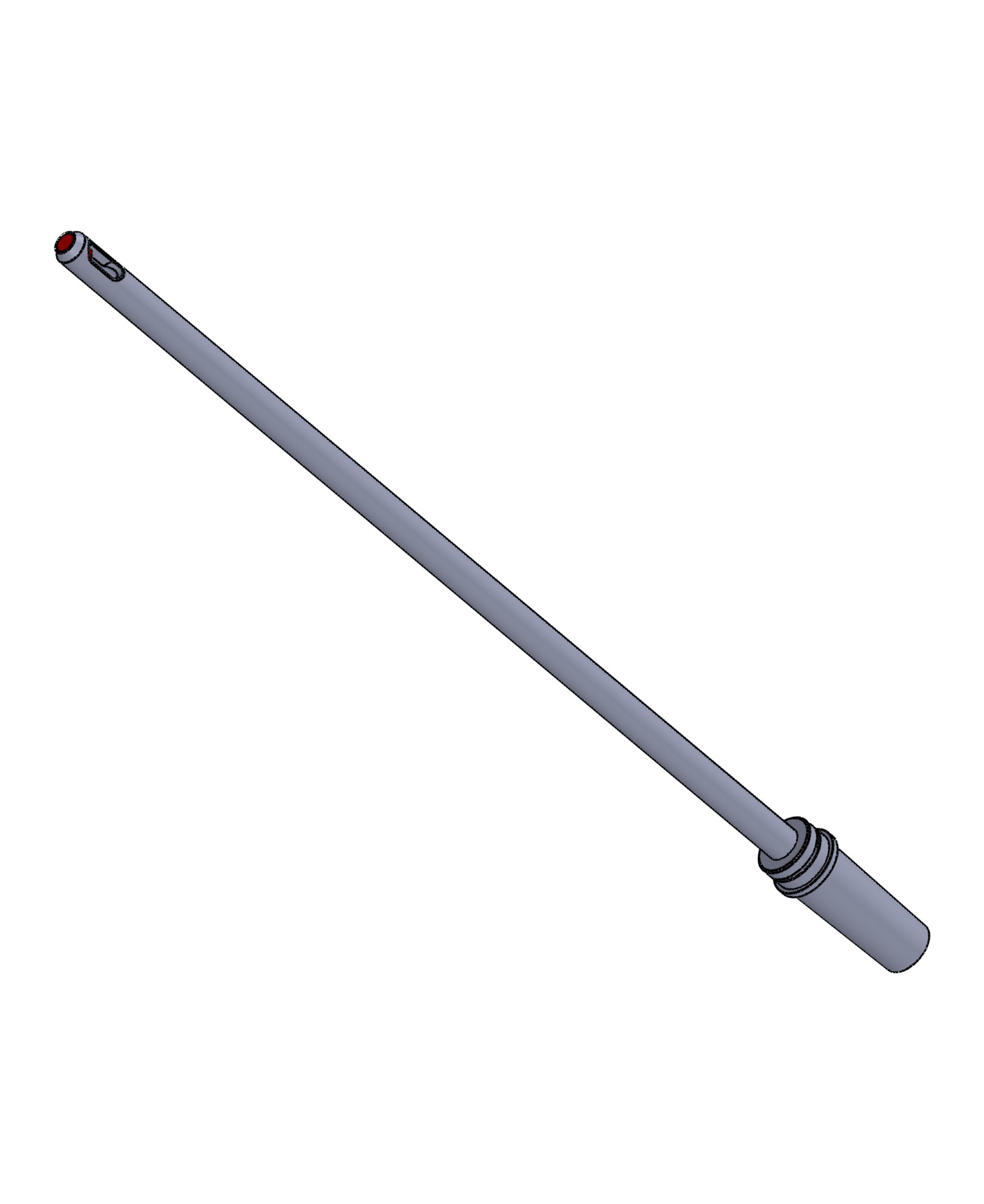

Single-Outlet Cylindrical Type Nozzles:
| Standard Type | A (mm) | B (mm) | C (mm) | D (mm) |
|---|---|---|---|---|
| 6 | 4 | 6 | 4 | 320 |
| 8 | 6 | 8 | 6 | 320 |
| 10 | 5 | 10 | 5 | 320 |
| 12 | 8 | 12 | 8 | 320 |
| 16 | 10 | 16 | 10 | 320 |
| 18 | 12 | 18 | 12 | 320 |
| 20 | 14 | 20 | 14 | 320 |
Single-Outlet Rectangular Type Nozzles:
| Standard Type | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) |
|---|---|---|---|---|---|
| 6X17 | 340 | 17 | 6 | 2.5 | 13.5 |
Note: The 10-12x / 3x service-life difference is in each case relative to hardened steel — no direct ratio comparing Tungsten Carbide to Boron Carbide against each other has been given.
📞 Contact us for detailed technical information such as the standard size table for Boron Carbide nozzles and their relationship with the XSB/XTC/XSC series.
